Avalon Miner A1566-185T Cooling Fan Replacement Guide

The Avalon Miner A1566-185T is a powerhouse in the Bitcoin mining industry, offering an impressive hashrate of 185 TH/s while maintaining exceptional energy efficiency. However, like all high-performance mining equipment, it requires regular maintenance to ensure optimal operation. One of the most critical components to monitor and replace when necessary is the cooling fan system. This guide will walk you through the process of replacing the cooling fans on your Avalon Miner A1566-185T, ensuring your miner continues to perform at its best.

Why Cooling Fans Are Critical for Your Avalon Miner

The Avalon Miner A1566-185T is equipped with dual 12050 FANs as part of its advanced thermal management system. These fans play a vital role in maintaining the miner’s operating temperature within the recommended range of -5℃ to 35℃. Over time, however, fans can wear out due to constant operation, dust accumulation, or mechanical failure. A malfunctioning fan can lead to overheating, reduced performance, and even permanent damage to the ASIC chips.

Replacing the cooling fans promptly is essential to:

1. Prevent Overheating: Ensure the miner operates within safe temperature limits.
2. Maintain Hashrate Performance: Avoid throttling or shutdowns caused by excessive heat.
3. Extend Equipment Lifespan: Protect internal components from heat-related wear and tear.

Tools and Materials You’ll Need

Before starting the replacement process, gather the following tools and materials:

• Replacement 12050 FANs (compatible with Avalon Miner A1566-185T)
• Phillips-head screwdriver
• Anti-static wrist strap (optional but recommended)
• Compressed air or a soft brush for cleaning
• Isopropyl alcohol and lint-free cloth for cleaning connectors

Step-by-Step Cooling Fan Replacement Guide

Step 1: Power Down and Disconnect the Miner

Safety is paramount when working with mining equipment. Begin by:

1. Turning off the miner and unplugging it from the power source.
2. Allowing the miner to cool down completely to avoid burns or accidental damage.

Step 2: Access the Internal Components

The Avalon Miner A1566-185T features a modular design, making it relatively easy to access internal components. Follow these steps:

1. Remove the outer casing by unscrewing the screws on the sides and back of the miner.
2. Carefully lift the casing to expose the internal components.

Step 3: Locate the Cooling Fans

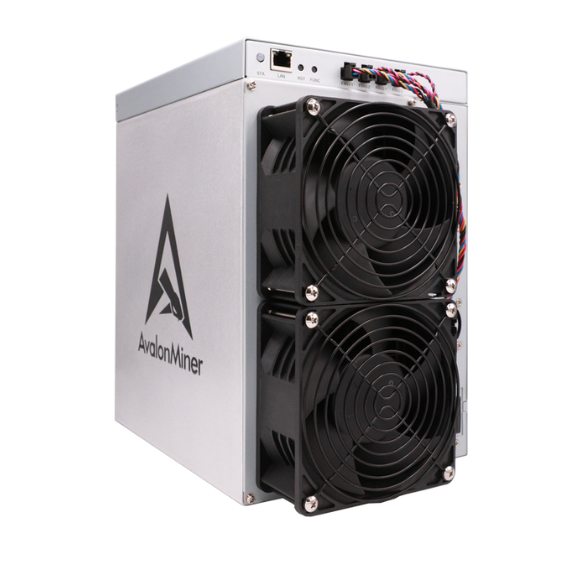

Once the casing is removed, you’ll see the dual 12050 FANs mounted near the front of the miner. These fans are responsible for drawing cool air into the system and expelling hot air.

Step 4: Disconnect the Old Fans

1. Identify the power connectors attached to each fan.
2. Gently disconnect the connectors by pulling them straight out. Avoid tugging on the wires to prevent damage.

Step 5: Remove the Old Fans

1. Use a Phillips-head screwdriver to remove the screws securing the fans to the chassis.
2. Carefully lift the fans out of their mounting positions.

Step 6: Clean the Area

Before installing the new fans, take the opportunity to clean the area:

1. Use compressed air or a soft brush to remove dust and debris from the fan mounts and surrounding components.
2. Wipe down any connectors with isopropyl alcohol and a lint-free cloth to ensure a clean connection.

Step 7: Install the New Fans

1. Position the new 12050 FANs in the mounting slots.
2. Secure them in place using the screws you removed earlier.
3. Reconnect the power connectors to the new fans, ensuring they are firmly seated.

Step 8: Reassemble the Miner

1. Carefully place the outer casing back onto the miner.
2. Secure it with the screws you removed earlier.

Step 9: Test the Miner

1. Plug the miner back into the power source and turn it on.
2. Monitor the fan operation to ensure they are spinning correctly and quietly.
3. Check the miner’s temperature readings to confirm that the new fans are effectively cooling the system.

Tips for Maintaining Your Cooling Fans

To extend the lifespan of your cooling fans and minimize the need for replacements:

1. Regular Cleaning: Dust and debris can accumulate on the fan blades, reducing their efficiency. Clean the fans every 2-3 months using compressed air.
2. Monitor Performance: Keep an eye on the miner’s temperature readings and fan speeds. Unusual noises or increased temperatures may indicate a problem.
3. Optimize Ventilation: Ensure your mining setup has adequate airflow to reduce the workload on the fans.

Why Choose Genuine Replacement Fans

When replacing the cooling fans on your Avalon Miner A1566-185T, it’s crucial to use genuine or high-quality compatible fans. Generic or low-quality fans may not provide the same level of performance or durability, potentially leading to overheating and reduced miner efficiency.

Genuine replacement fans offer:

1. Perfect Compatibility: Designed specifically for the Avalon Miner A1566-185T, ensuring seamless integration.
2. Reliable Performance: Built to withstand the rigors of continuous operation in a mining environment.
3. Longevity: High-quality materials and construction for extended service life.

Conclusion

Replacing the cooling fans on your Avalon Miner A1566-185T is a straightforward process that can significantly impact your miner’s performance and longevity. By following this guide, you can ensure your miner remains cool, efficient, and ready to tackle the demands of Bitcoin mining.

Regular maintenance, including fan replacement and cleaning, is essential to maximize your investment in the Avalon Miner A1566-185T. With its advanced thermal management system and modular design, this miner is built for reliability and ease of maintenance, making it an excellent choice for both professional mining operations and individual enthusiasts.

By staying proactive with your miner’s upkeep, you can enjoy consistent performance, lower operational costs, and a longer lifespan for your valuable mining equipment.
