How to Troubleshoot iBeLink BM-N3 Max Mining Issues?

The iBeLink BM-N3 Max is a professional-grade ASIC miner designed specifically for the Eaglesong algorithm, making it an ideal choice for CKB (Nervos Network) mining. With its robust performance, industrial reliability, and advanced cooling system, the BM-N3 Max has become a go-to solution for both home miners and large-scale operations. However, like any sophisticated piece of hardware, it can encounter issues that may disrupt mining efficiency. This article provides a comprehensive guide to troubleshooting common problems with the iBeLink BM-N3 Max, ensuring your mining operations remain smooth and productive.

Understanding the iBeLink BM-N3 Max

Before diving into troubleshooting, it’s essential to understand the key features and specifications of the BM-N3 Max. This knowledge will help you identify potential issues and apply the correct solutions.

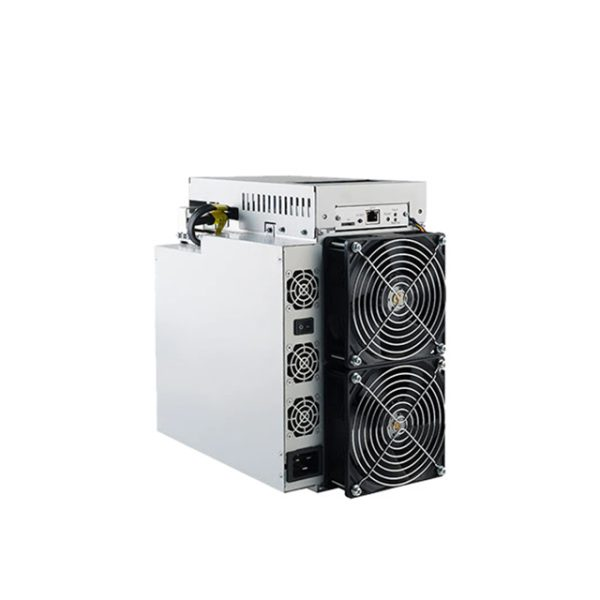

The BM-N3 Max is engineered for maximum efficiency in CKB mining, delivering an impressive hash rate while maintaining a compact form factor. Its quad-fan cooling system ensures optimal thermal management, even during extended operations. The miner operates within a power range of 190-240V, consuming up to 3300W, and is designed to perform reliably in diverse environmental conditions, with temperature tolerance ranging from 0 to 40°C and humidity resistance up to 95%.

Other notable features include:

• Ethernet connectivity for seamless integration into existing networks.
• Modular design for easy maintenance and repairs.
• Industrial-grade build quality for extended durability.

With these features in mind, let’s explore common issues and their solutions.

---

Common Issues and Troubleshooting Steps

1. Miner Not Powering On

If your BM-N3 Max fails to power on, the issue could stem from several sources:

Possible Causes:

• Faulty power supply or loose connections.
• Incorrect voltage input.
• Damaged power cable.

Troubleshooting Steps:

1. Check Power Connections: Ensure all cables are securely connected to the miner and power supply unit (PSU).
2. Verify Voltage Input: Confirm that your power source matches the miner’s required range of 190-240V.
3. Inspect Power Cable: Look for visible damage or wear on the power cable and replace it if necessary.
4. Test PSU: If possible, test the PSU with another miner or device to rule out hardware failure.

2. Overheating or Thermal Issues

The BM-N3 Max is equipped with a quad-fan cooling system, but overheating can still occur under certain conditions.

Possible Causes:

• Blocked airflow due to dust or debris.
• Malfunctioning fans.
• High ambient temperatures.

Troubleshooting Steps:

1. Clean the Miner: Regularly remove dust and debris from the fans and vents to ensure proper airflow.
2. Check Fan Operation: Listen for unusual noises or observe if the fans are spinning at normal speeds. Replace faulty fans if needed.
3. Monitor Ambient Temperature: Ensure the mining environment stays within the recommended range of 0-40°C.
4. Improve Ventilation: Consider adding external fans or relocating the miner to a cooler area.

3. Reduced Hash Rate or Performance Drop

A noticeable decline in hash rate can significantly impact mining profitability.

Possible Causes:

• Overclocking settings.
• Firmware issues.
• Network connectivity problems.

Troubleshooting Steps:

1. Review Overclocking Settings: Reset the miner to default settings and gradually adjust overclocking parameters to find the optimal balance between performance and stability.
2. Update Firmware: Check for firmware updates from iBeLink and install them to address potential bugs or performance enhancements.
3. Test Network Connection: Ensure the Ethernet cable is securely connected and test the network for latency or packet loss.

4. Connectivity Issues

Network problems can prevent the miner from communicating with the mining pool.

Possible Causes:

• Faulty Ethernet cable or port.
• Incorrect network configuration.
• IP address conflicts.

Troubleshooting Steps:

1. Inspect Ethernet Cable: Replace the cable if it appears damaged or try using a different port on your router.
2. Verify Network Configuration: Ensure the miner’s IP address, gateway, and DNS settings are correctly configured.
3. Check for IP Conflicts: Use your router’s admin panel to confirm no other device is using the same IP address as the miner.

5. Fan Noise or Vibration

While the BM-N3 Max operates at 75dB, excessive noise or vibration may indicate underlying issues.

Possible Causes:

• Loose fan mounts.
• Worn-out fan bearings.
• Uneven surface placement.

Troubleshooting Steps:

1. Tighten Fan Mounts: Secure any loose screws or mounts to reduce vibrations.
2. Replace Fans: If noise persists, consider replacing the affected fans with genuine iBeLink parts.
3. Level the Miner: Place the miner on a flat, stable surface to minimize vibrations.

---

Preventative Maintenance Tips

To minimize downtime and extend the lifespan of your BM-N3 Max, follow these maintenance practices:

1. Regular Cleaning: Clean the miner and surrounding area every 2-3 weeks to prevent dust buildup.
2. Monitor Performance: Use mining software to track hash rate, temperature, and fan speeds.
3. Update Firmware: Stay informed about firmware updates and apply them promptly.
4. Inspect Hardware: Periodically check cables, fans, and power supplies for signs of wear or damage.
5. Maintain Optimal Environment: Ensure the mining space remains within the recommended temperature and humidity ranges.

---

Leveraging iBeLink’s Support and Warranty

One of the standout advantages of the BM-N3 Max is iBeLink’s comprehensive warranty and support system. With a 180-day warranty, miners can address hardware issues without incurring additional costs. Additionally, the modular design and availability of spare parts simplify repairs, further reducing downtime.

For complex issues, consider reaching out to iBeLink’s customer support or consulting authorized service centers like Minerfixes. Their expertise can help resolve problems quickly and efficiently, ensuring your mining operations remain profitable.

---

Conclusion

The iBeLink BM-N3 Max is a powerful and reliable ASIC miner tailored for CKB mining. By understanding its features and following the troubleshooting steps outlined in this article, you can address common issues effectively and maintain optimal performance.

Remember, preventative maintenance is key to avoiding problems and maximizing the miner’s lifespan. With iBeLink’s robust warranty and support infrastructure, you can mine confidently, knowing that help is always available when needed. Whether you’re a home miner or managing a large-scale operation, the BM-N3 Max offers the performance and reliability to meet your needs.

By staying proactive and informed, you can ensure your iBeLink BM-N3 Max continues to deliver exceptional results, helping you capitalize on the growing potential of Nervos Network and the CKB token market. Happy mining!
